Shenzhen Wanbo Technology Co., Ltd.
1 Years
| Ask Lasest Price | |
| Brand Name : | wanbo |
| Model Number : | WBP-LED01 |
| Certification : | CE / IS09001 |
| Price : | Negotiation |
| Delivery Time : | 7-15 working day |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 1 ~ 5000 piece 30days |
Parking Sensor Split Type Parking Space Indicator Light RGB LED Detector PGS
| Model | WBP-LED01 |
| Specification and Dimension | φ120*45mm |
| Net Weight | 100g |
| Material Quality | ABS engineering plastic |
| Color Instructions | Red and green double color highlight LED |
| Mounting Height | 1.5-4 m (same level as detector) |
| Working Voltage | DC 5V |
| Working Temperature | -30℃～+75℃ |
| Ambient Humidity | 90% RH (no condensation) |
| Power Dissipation | <0.5 W |
| Visual Range | 30m |
The parking space indicator light is installed directly in front of each parking space, and is directly controlled by the ultrasonic parking space detector, which displays different colors according to the instructions of the detector. The indicator light is green when there is no vehicle parked on the parking space, and red when the vehicles are parked.

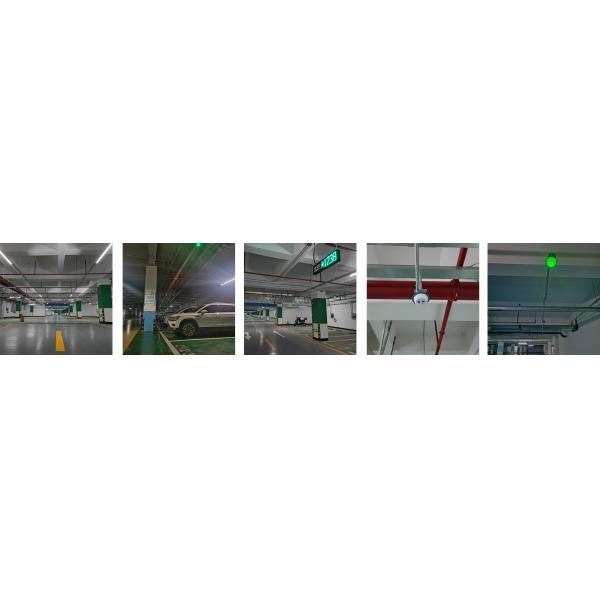

The split parking space indicator light is installed between 1.5 meters and 4.0 meters directly above the parking space, and the recommended installation height is 2.5 meters. The installation diagram is shown in Figure 4.1:
Parking Sensor Split Type Parking Space Indicator Light RGB LED detector PGS
|
|
